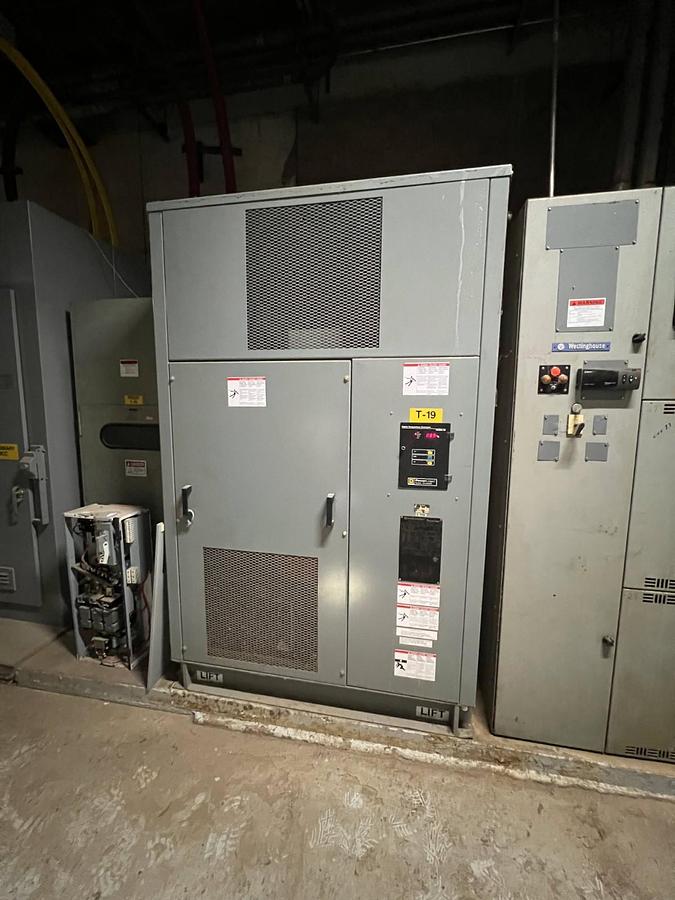

SQUARE D CAST COIL DRY TYPE TRANSFORMER 1500/2000 KVA 4160 DELTA / 480Y/277

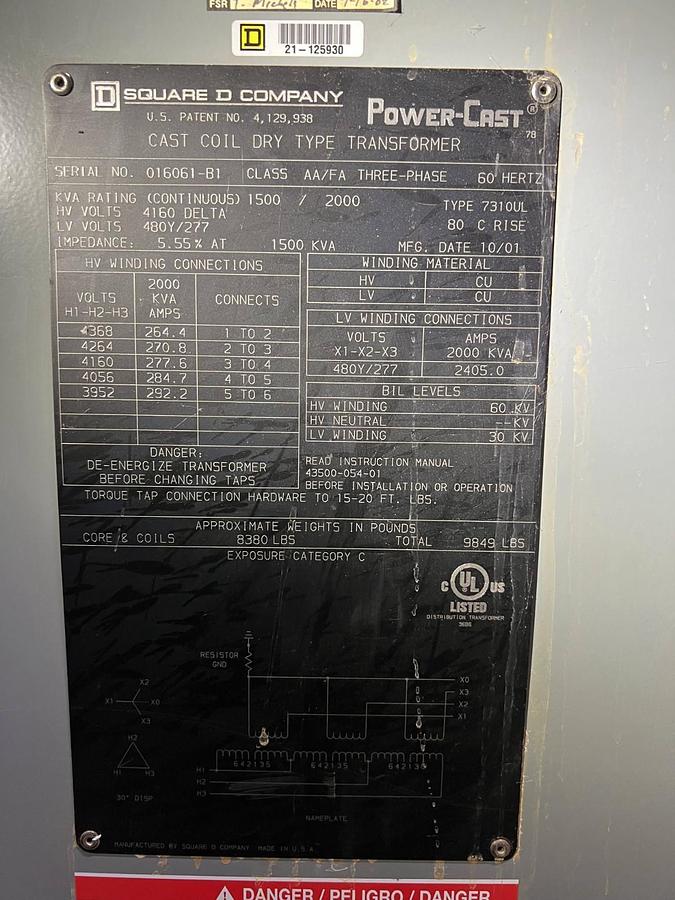

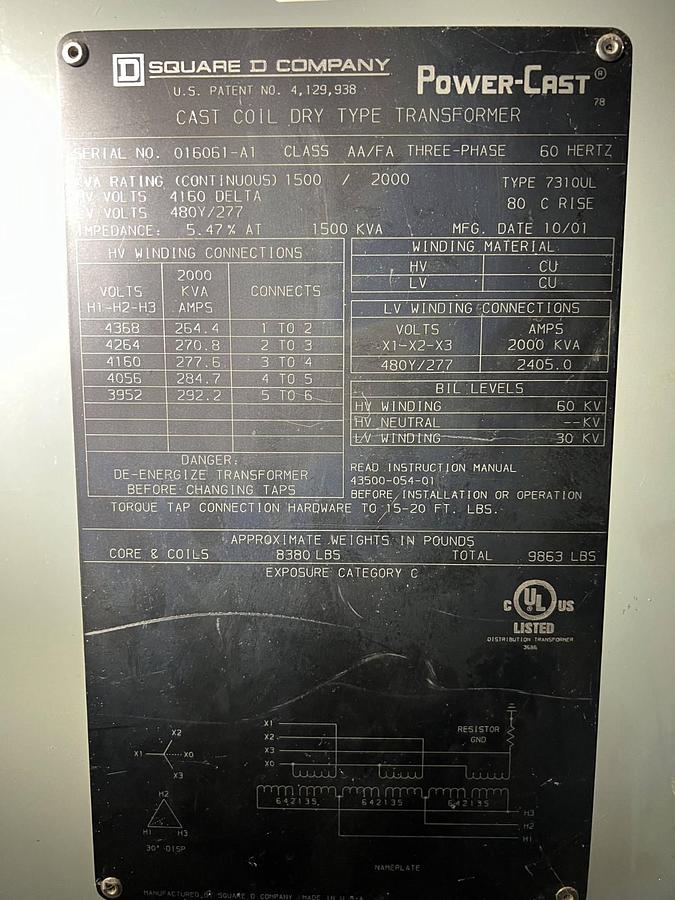

Nameplate specifications - Type: 7310UL - Serial number: 016061-B1 - Manufactured: October 2001 - Phase/frequency: Three-phase, 60 Hz - Continuous rating: 1,500 kVA - Fan-assisted rating: 2,000 kVA, Class AA/FA - Primary voltage: 4,160 V delta - Secondary voltage: 480Y/277 V - Impedance: 5.55% at 1,500 kVA - Temperature rise: 80°C - Winding material: Copper primary and copper secondary - Secondary current at 2,000 kVA: 2,405 amps - BIL: - High-voltage winding: 60 kV - Low-voltage winding: 30 kV - Core-and-coil weight: 8,380 lb - Total transformer weight: 9,849 lb - Exposure category: C - Primary connection: Delta - Secondary connection: Wye with neutral Primary tap settings Primary voltage Approx. current at 2,000 kVA Tap connection 4,368 V 264.4 A 1 to 2 4,264 V 270.8 A 2 to 3 4,160 V 277.6 A 3 to 4 4,056 V 284.7 A 4 to 5 3,952 V 292.2 A 5 to 6 Square D Power-Cast 1500/2000 kVA Dry-Type Transformer, 4160V Delta Primary, 480Y/277V Secondary, Copper Windings, 3-Phase, 60 Hz, 80°C Rise, 5.55% Impedance.
