WESTINGHOUSE CAST COIL DRY TYPE TRANSFORMER 2000/2667 KVA 4160 DELTA / 480Y/277

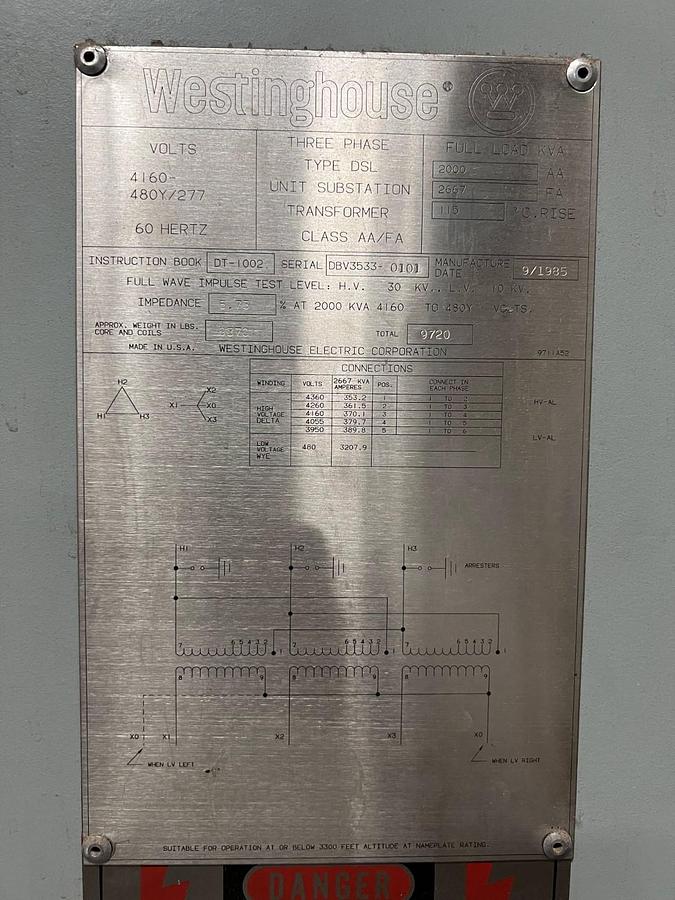

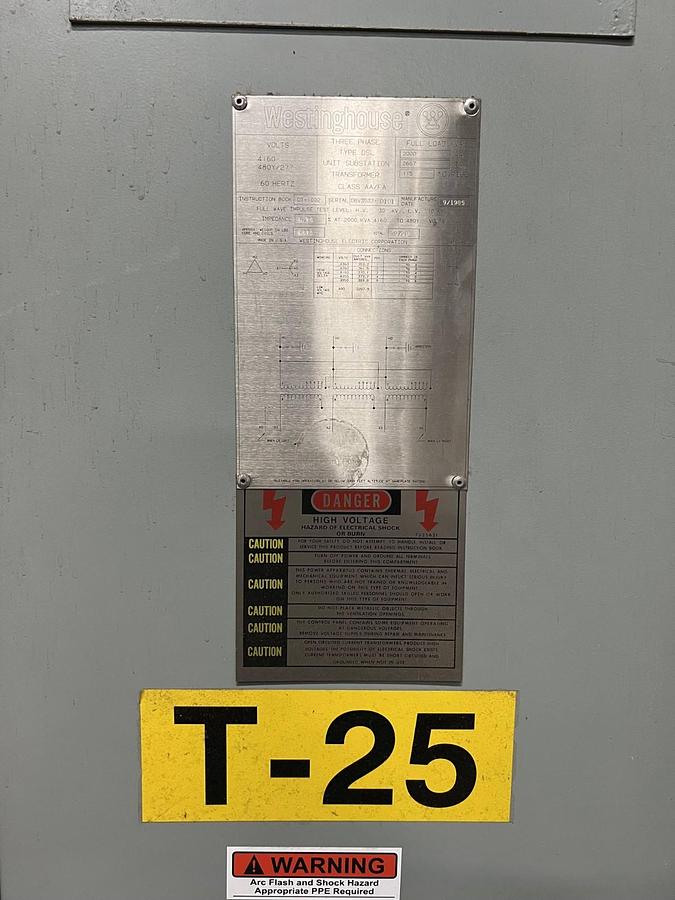

Nameplate specifications - Manufacturer: Westinghouse Electric Corporation - Type: DSL - Class: AA/FA - Serial number: DBV3533-0101 - Manufactured: September 1985 - Frequency: 60 Hz - Primary voltage: 4,160 V delta - Secondary voltage: 480Y/277 V - Self-cooled rating: 2,000 kVA - Fan-assisted rating: 2,667 kVA - Temperature rise: 115°C - Impedance: 5.73% at 2,000 kVA - Primary winding: Aluminum - Secondary winding: Aluminum - Core-and-coil weight: Approximately 8,370 lb - Total weight: Approximately 9,720 lb - Altitude rating: Full nameplate rating at or below 3,300 feet Electrical ratings - Primary current at 2,000 kVA: Approximately 277.6 amps - Primary current at 2,667 kVA: Approximately 370.1 amps - Secondary current at 2,000 kVA: Approximately 2,405 amps - Secondary current at 2,667 kVA: 3,207.9 amps Primary tap settings Primary voltage Current at 2,667 kVA Tap position Connection 4,360 V 353.2 A 1 1 to 2 4,260 V 361.5 A 2 2 to 3 4,160 V 370.1 A 3 3 to 4 4,055 V 379.7 A 4 4 to 5 3,950 V 389.8 A 5 5 to 6
