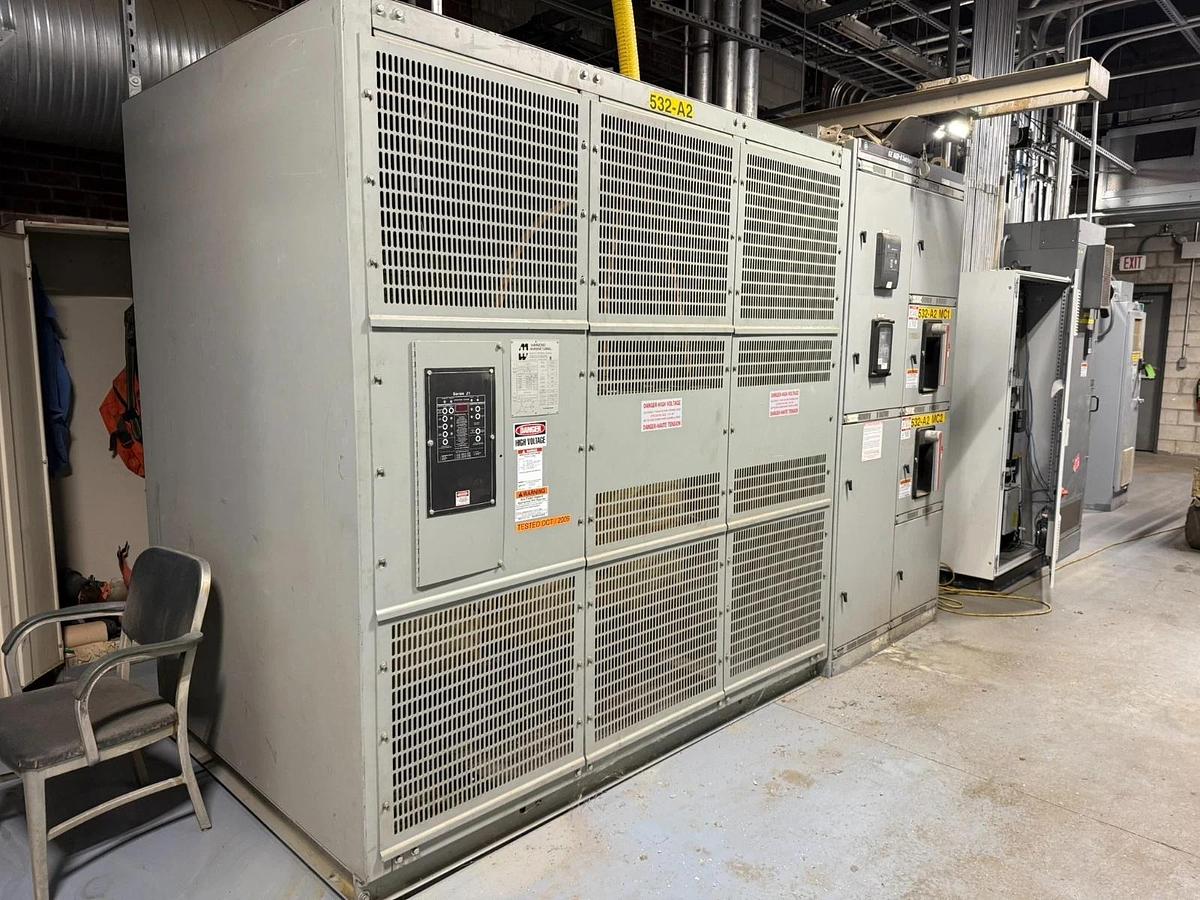

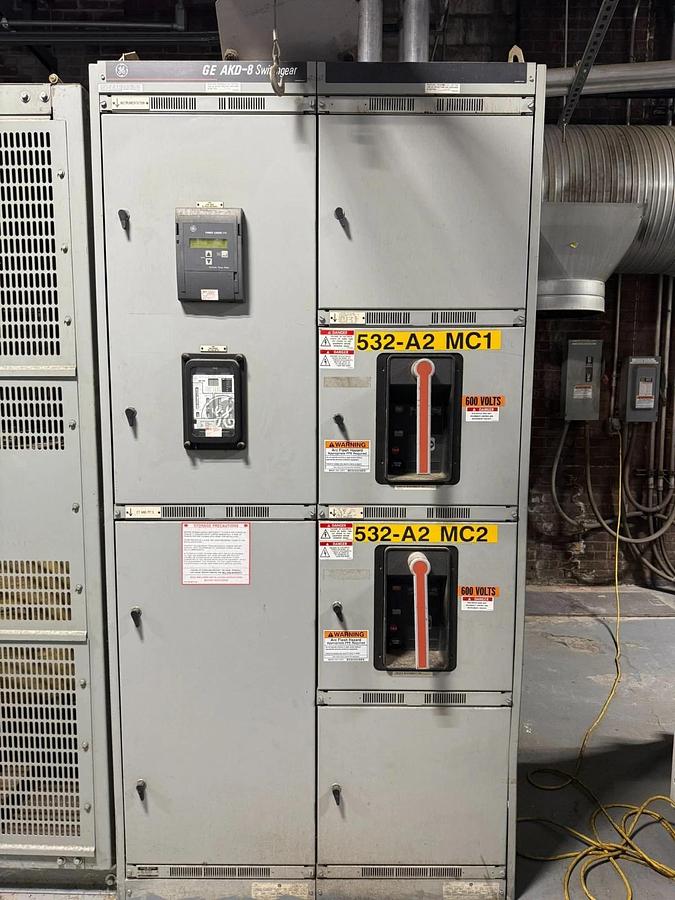

Hammond Power 1500 KVA DRY TYPE TRANSFORMER 4160 HV 575Y/332V LV WITH GE-AKD-8

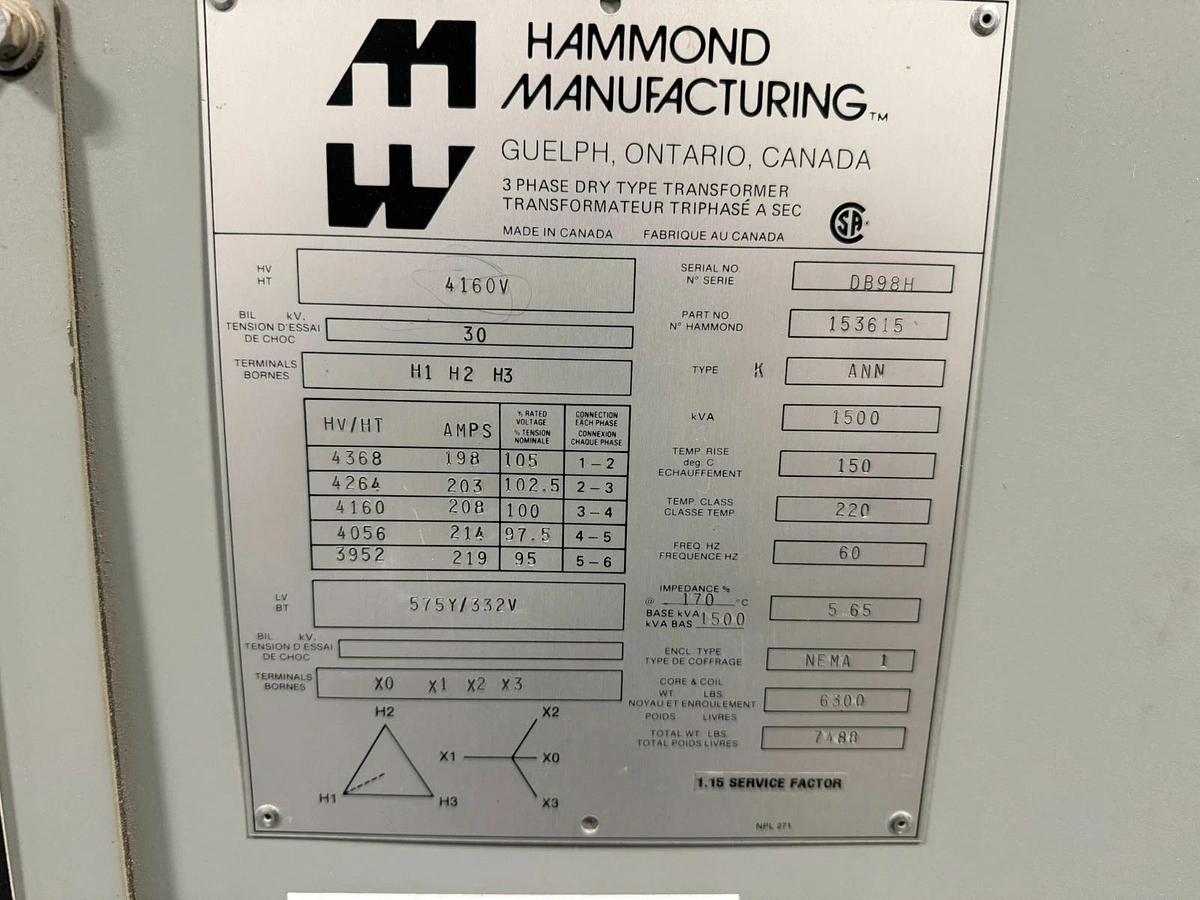

Hammond Manufacturing Dry-Type Transformer Manufacturer: Hammond Manufacturing Location of Manufacture: Guelph, Ontario, Canada Type: 3-Phase Dry-Type Transformer Cooling: ANN (Air-Natural) Enclosure: NEMA 1 (Indoor) Condition: Used Electrical Ratings Power Rating: 1,500 kVA Frequency: 60 Hz Service Factor: 1.15 Primary (High Voltage) Nominal Voltage: 4,160 V Tap Voltages: 4,368 V 4,264 V 4,160 V 4,056 V 3,952 V Primary Terminals: H1, H2, H3 Secondary (Low Voltage) Voltage: 575Y / 332 V Secondary Terminals: X0, X1, X2, X3 Performance & Construction Impedance: 5.65% (at 170°C, 1,500 kVA base) Temperature Rise: 150°C Temperature Class: 220°C Insulation / Design Type: Type K CSA Listed Weights Core & Coil Weight: 6,300 lbs Total Weight: 7,488 lbs Identification Serial Number: DB98H Hammond Part Number: 153615 Description This Hammond Manufacturing 1,500 kVA, 4.16 kV to 575Y/332 V dry-type transformer is designed for heavy industrial and commercial power distribution applications. The multiple primary voltage taps allow for flexible installation across varying incoming voltages, while the NEMA 1 enclosure makes it suitable for indoor electrical rooms and substations. The unit is CSA listed and built for continuous-duty operation.
