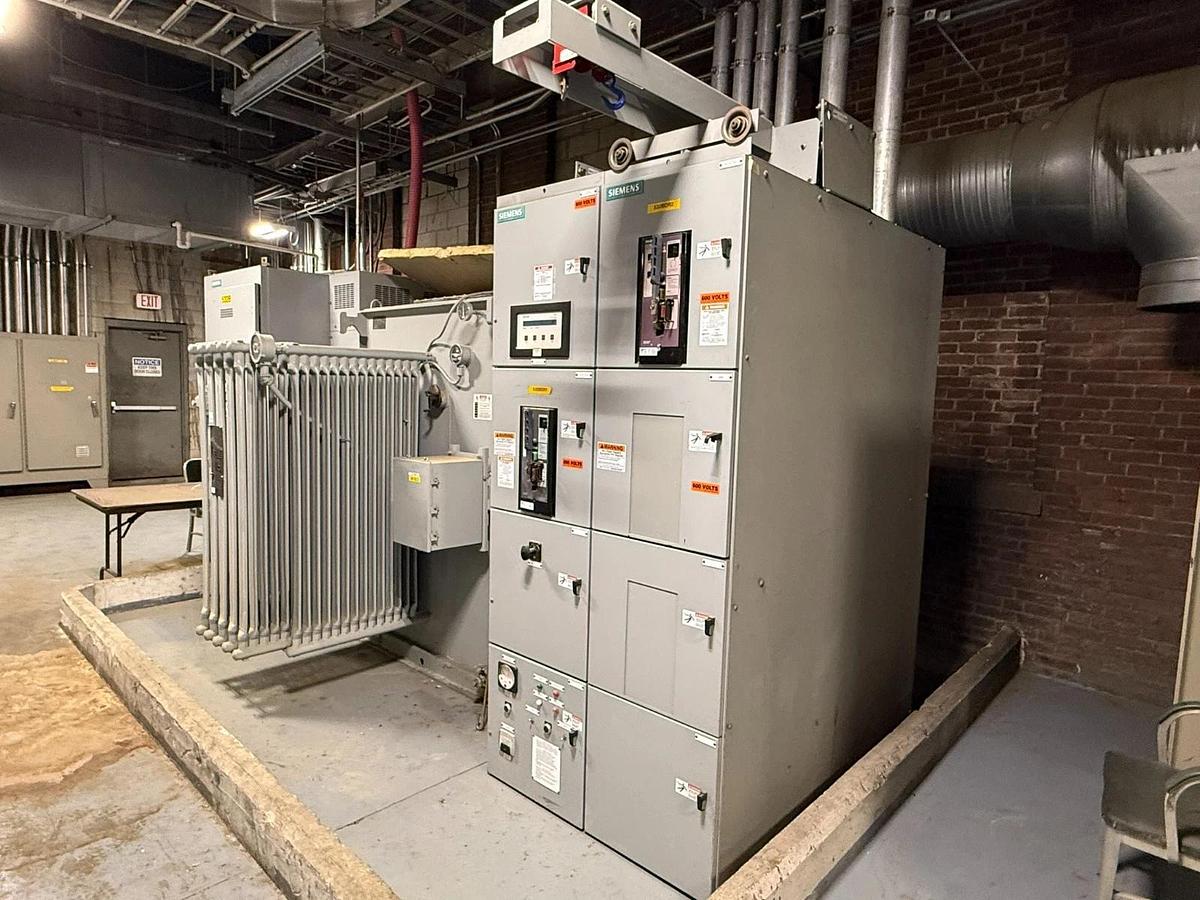

Siemens 2500–3500 kVA 13.8kV–600Y/346V Liquid-Filled Substation Transformer

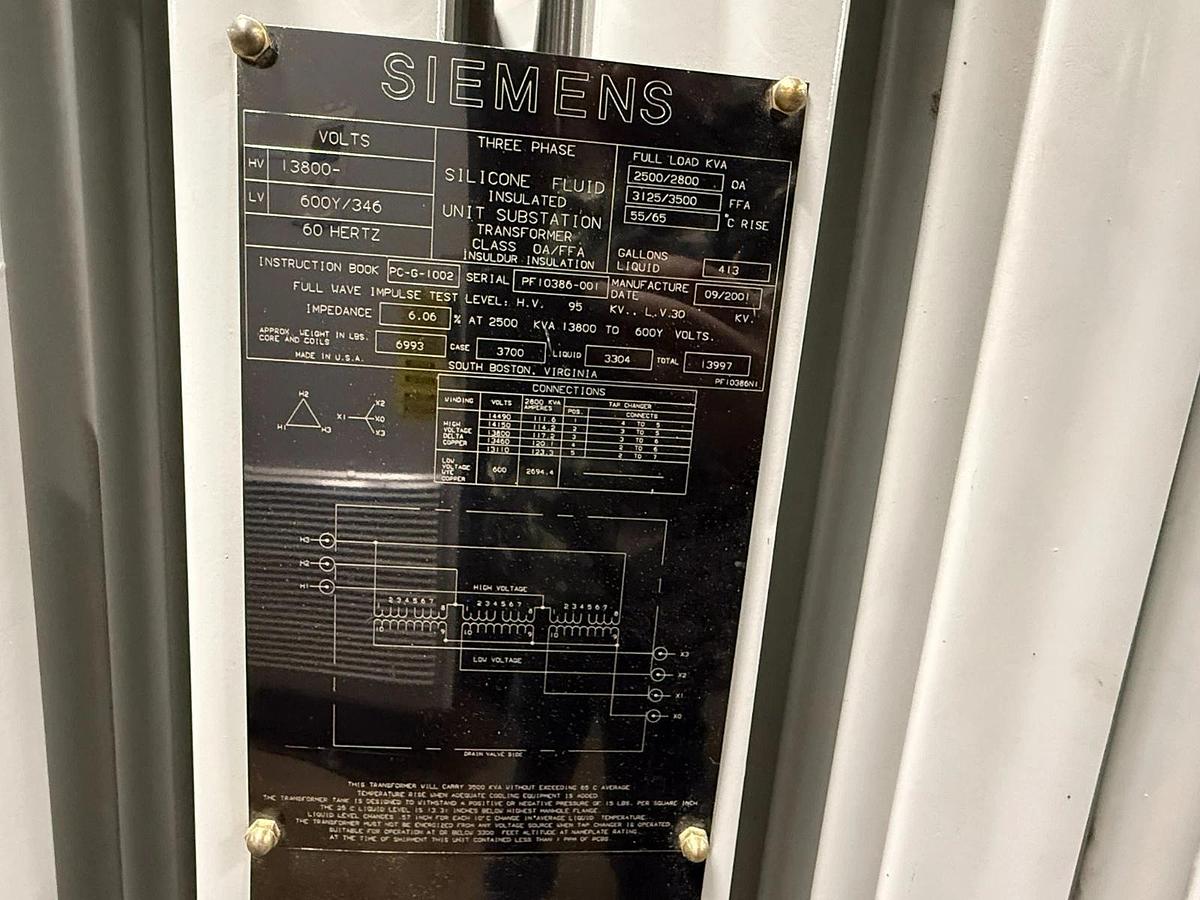

Siemens Liquid-Filled Substation Transformer Manufacturer: Siemens Type: Three-Phase Unit Substation Transformer Insulation: Silicone Fluid (Liquid-Filled) Cooling Class: OA / FA / FFA Condition: Used Made in: USA (South Boston, Virginia) Electrical Ratings Frequency: 60 Hz Impedance: 6.06% (at 2,500 kVA) Power Rating OA: 2,500 / 2,800 kVA FA: 3,125 / 3,500 kVA Temperature Rise: 55 / 65 °C Primary (High Voltage) Voltage: 13,800 V Primary Taps: 14,490 V 14,150 V 13,800 V 13,460 V 13,110 V Secondary (Low Voltage) Voltage: 600Y / 346 V Insulation & Testing Insulation Class: OA/FA/FFA Full Wave Impulse Test Level: HV: 95 kV LV: 30 kV Fluid & Weights Insulating Liquid: Silicone Fluid Liquid Volume: 413 gallons Core & Coil Weight: 6,993 lbs Case Weight: 3,700 lbs Liquid Weight: 3,304 lbs Total Weight: 13,997 lbs Identification Serial Number: PF10386-001 Instruction Book: PC-G-1002 Manufacture Date: September 2001
