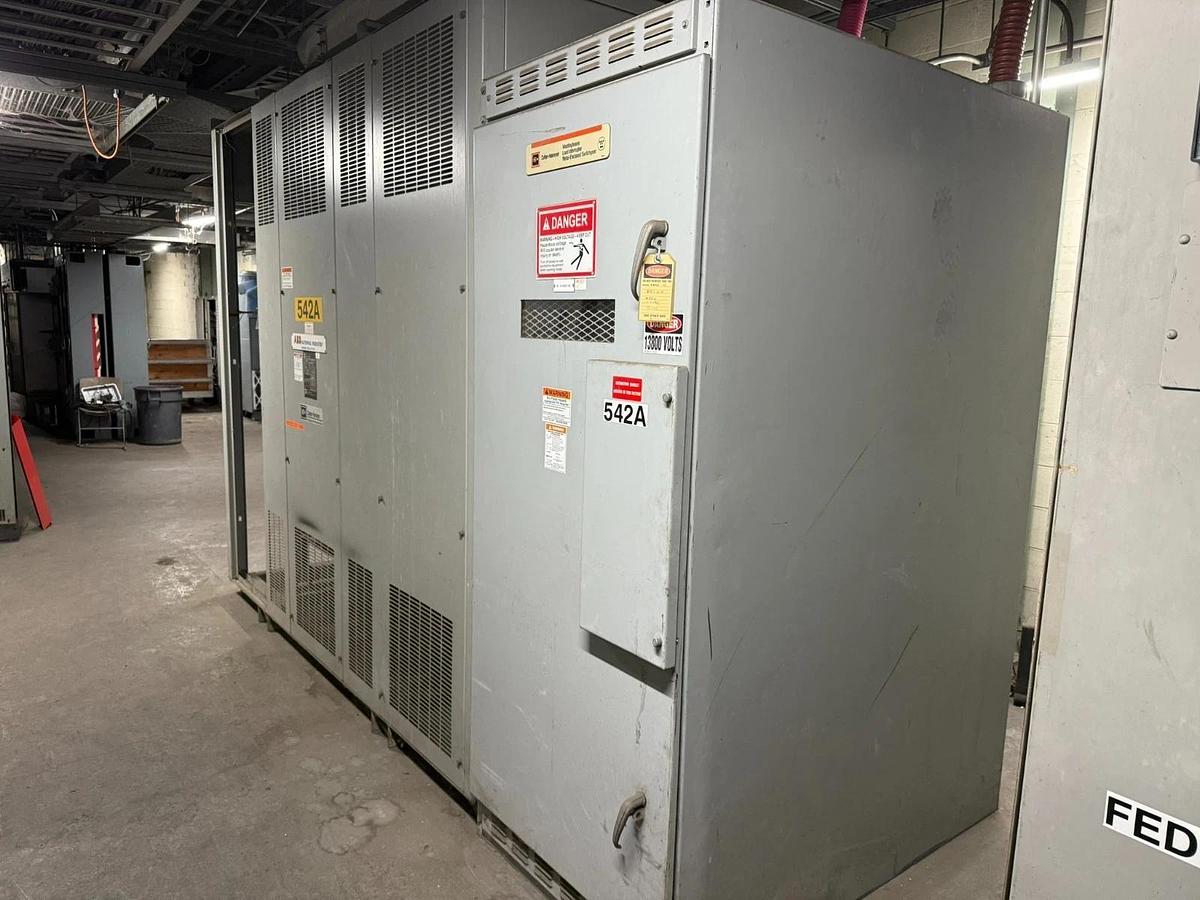

ABB CUTLER HAMMER 2500/3333 kVA 13800 Delta to 600Y 3PH Dry Type Transformer

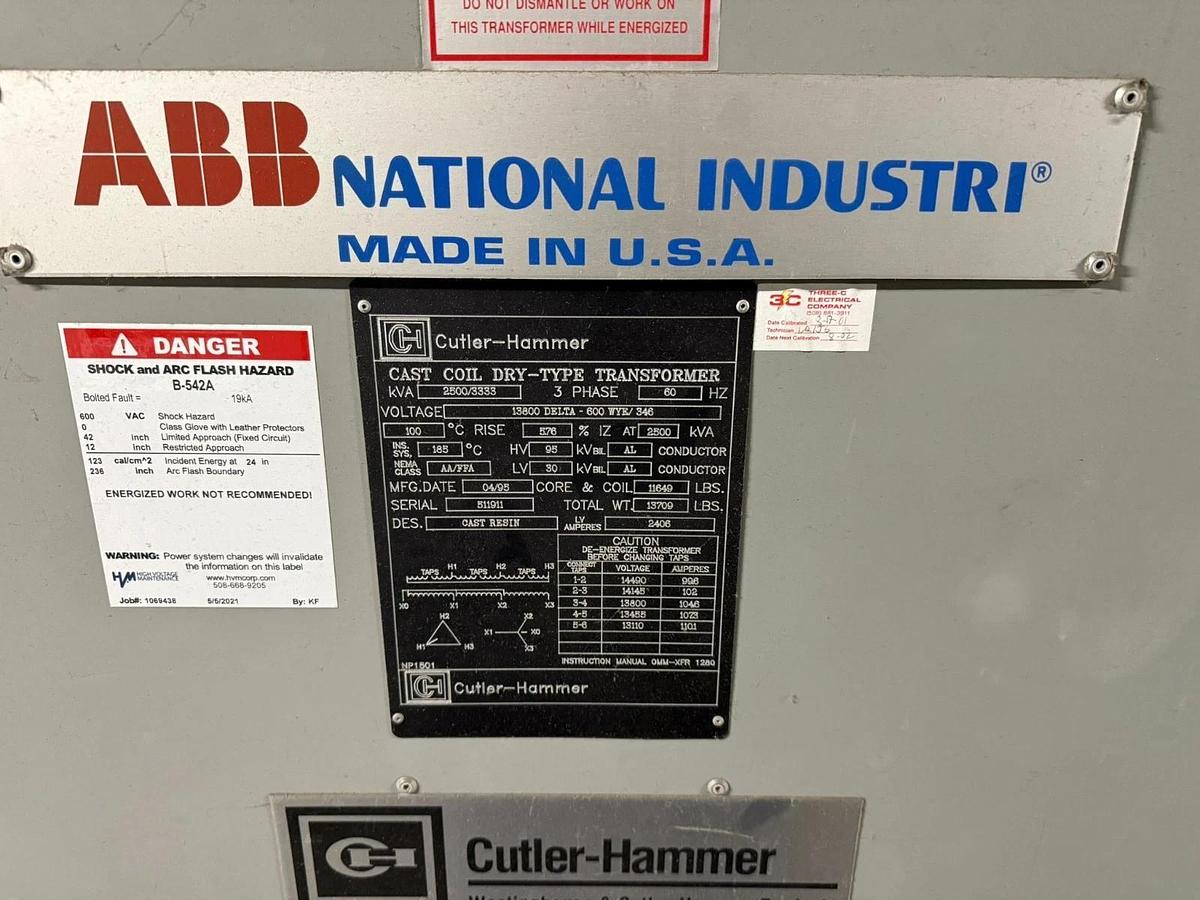

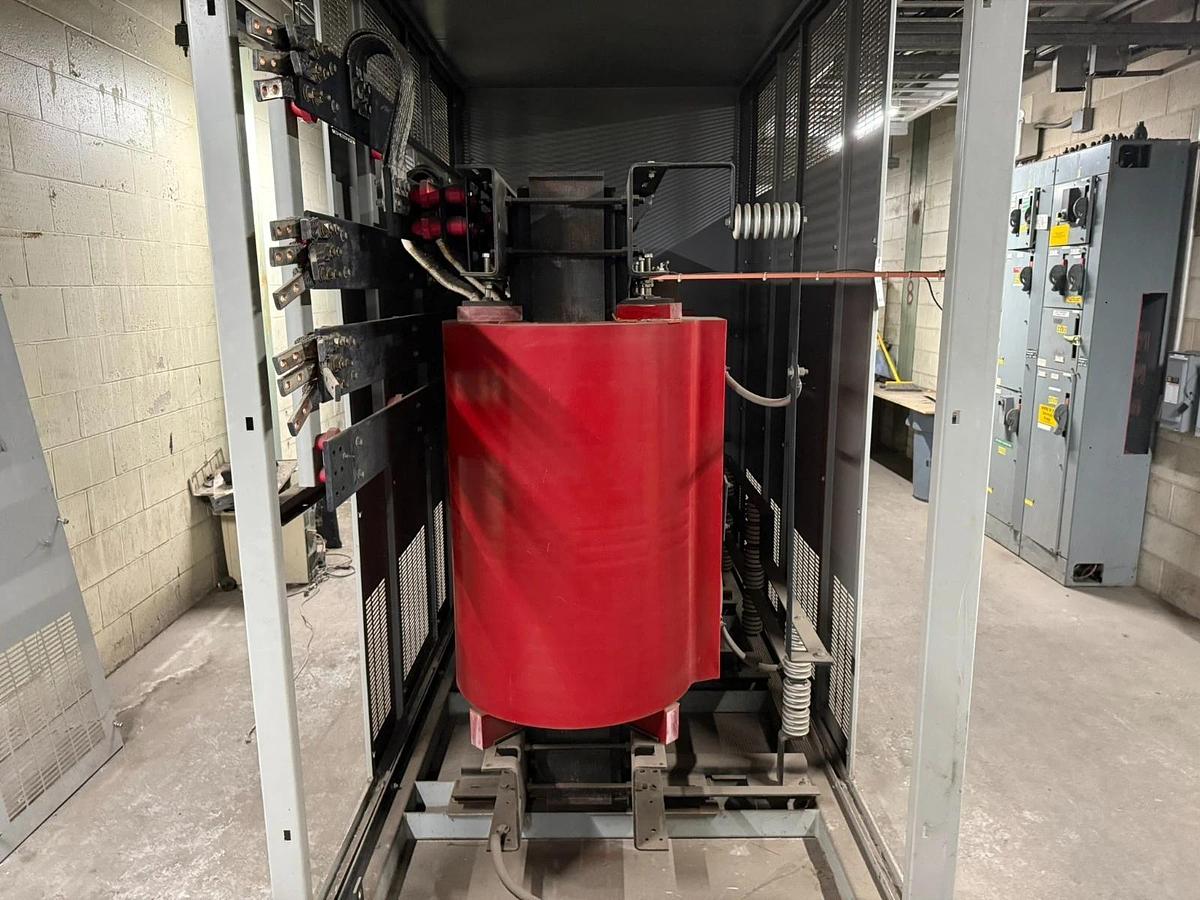

Equipment Identification Manufacturer: Cutler-Hammer (ABB National Industri) Type: Cast Coil Dry-Type Transformer Phases: 3-phase Frequency: 60 Hz Cooling / Insulation: Cast resin (dry-type) Manufacture Date: 04 / 1995 Instruction Manual: IOM-XFR 1280 Power Rating kVA: 2500 / 3333 2500 kVA self-cooled (AA) 3333 kVA forced-air (FA) Voltage Ratings Primary (HV): 13,800 V Delta Secondary (LV): 600Y / 346 V Wye (grounded) Electrical Characteristics Impedance: 5.76 % Z @ 2500 kVA Temperature Rise: 100 °C Insulation System: 185 °C HV BIL: 95 kV LV BIL: 30 kV Conductor Material: Aluminum (HV & LV) Current Ratings Low-Voltage Amps: 2406 A High-Voltage Amps (by tap): 14,490 V â 996 A 14,145 V â 1022 A 13,800 V â 1046 A (nominal) 13,455 V â 1073 A 13,110 V â 1101 A Weight Core & Coil: 11,649 lb Total Weight: 13,709 lb
