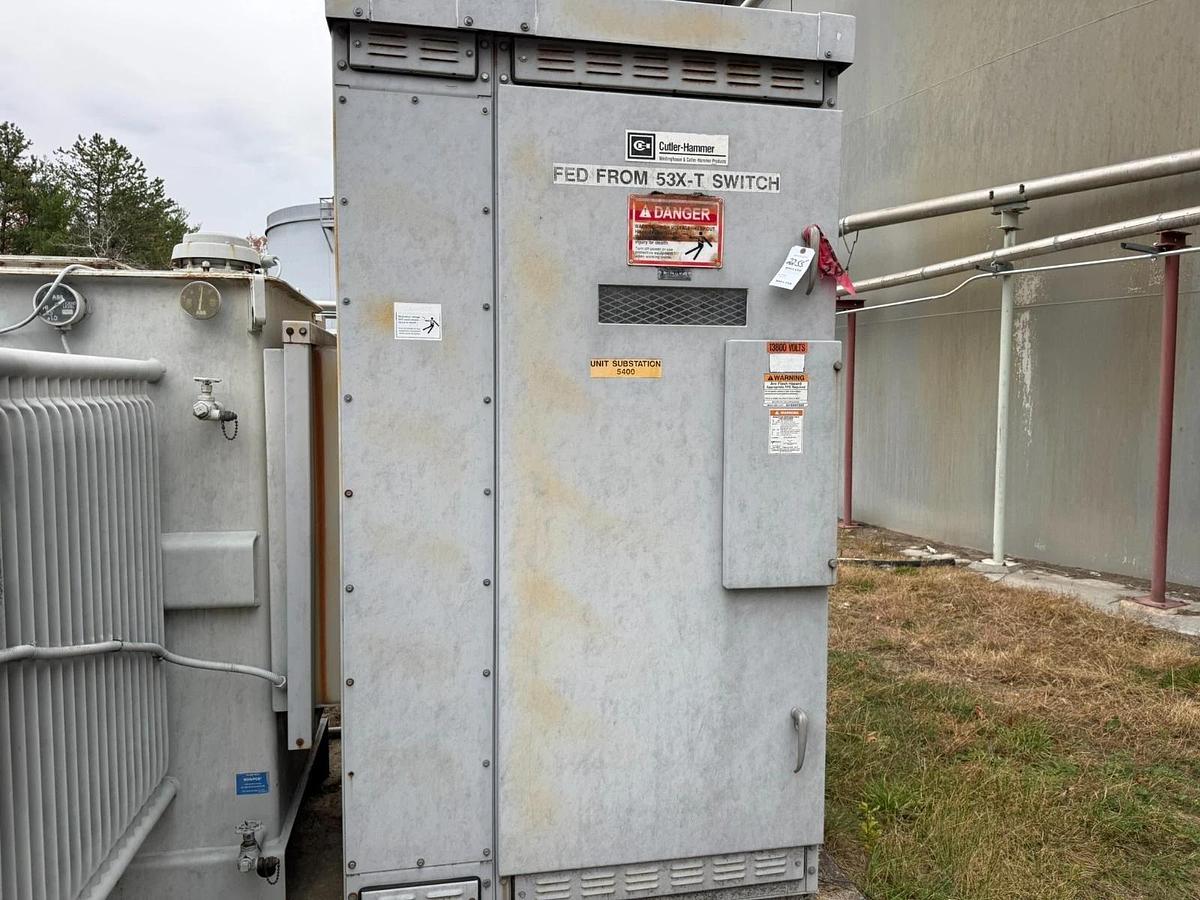

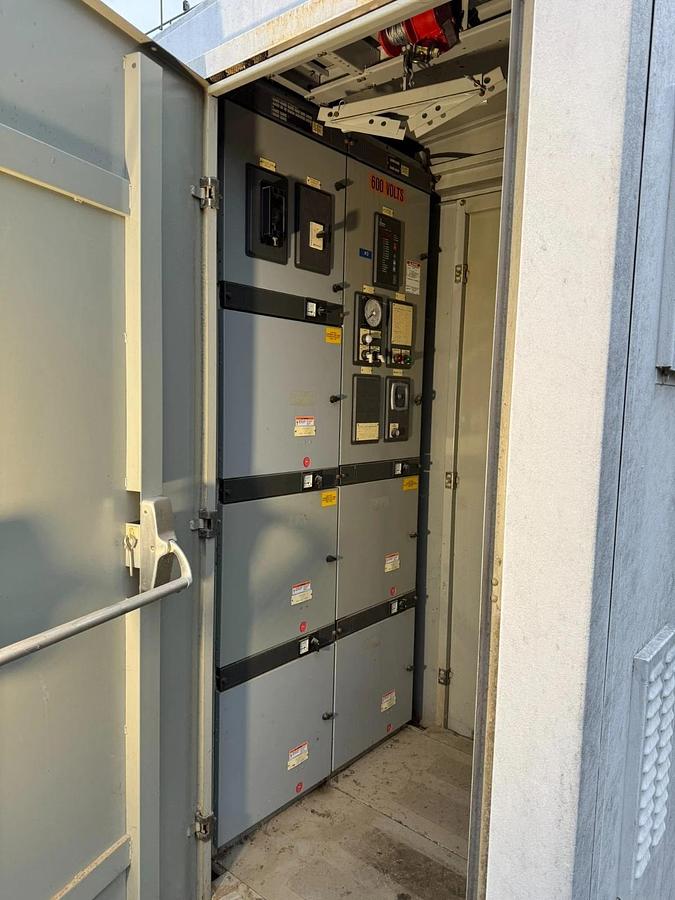

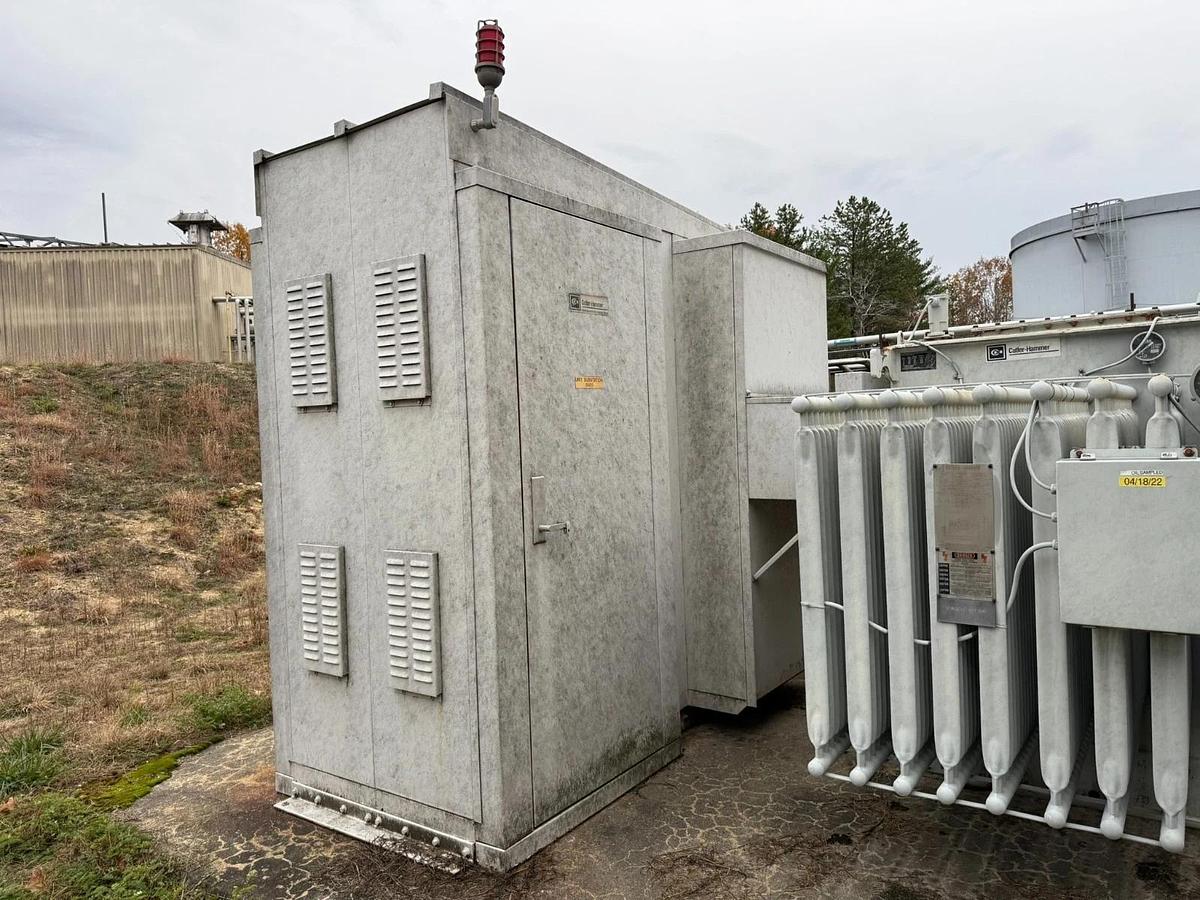

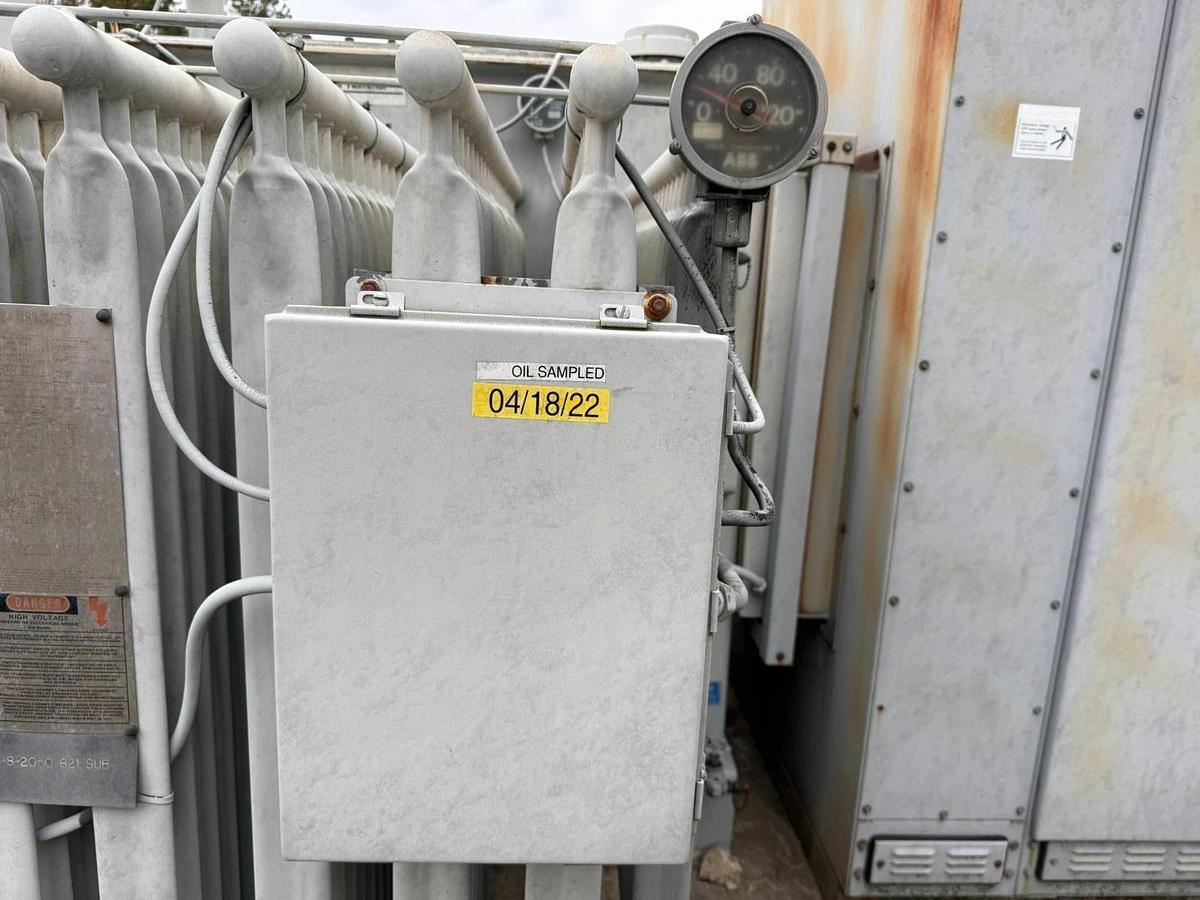

CUTLER HAMMER 2500 kVA HV 13.8kV–600Y/346V Substation Transformer W/ Switchgear

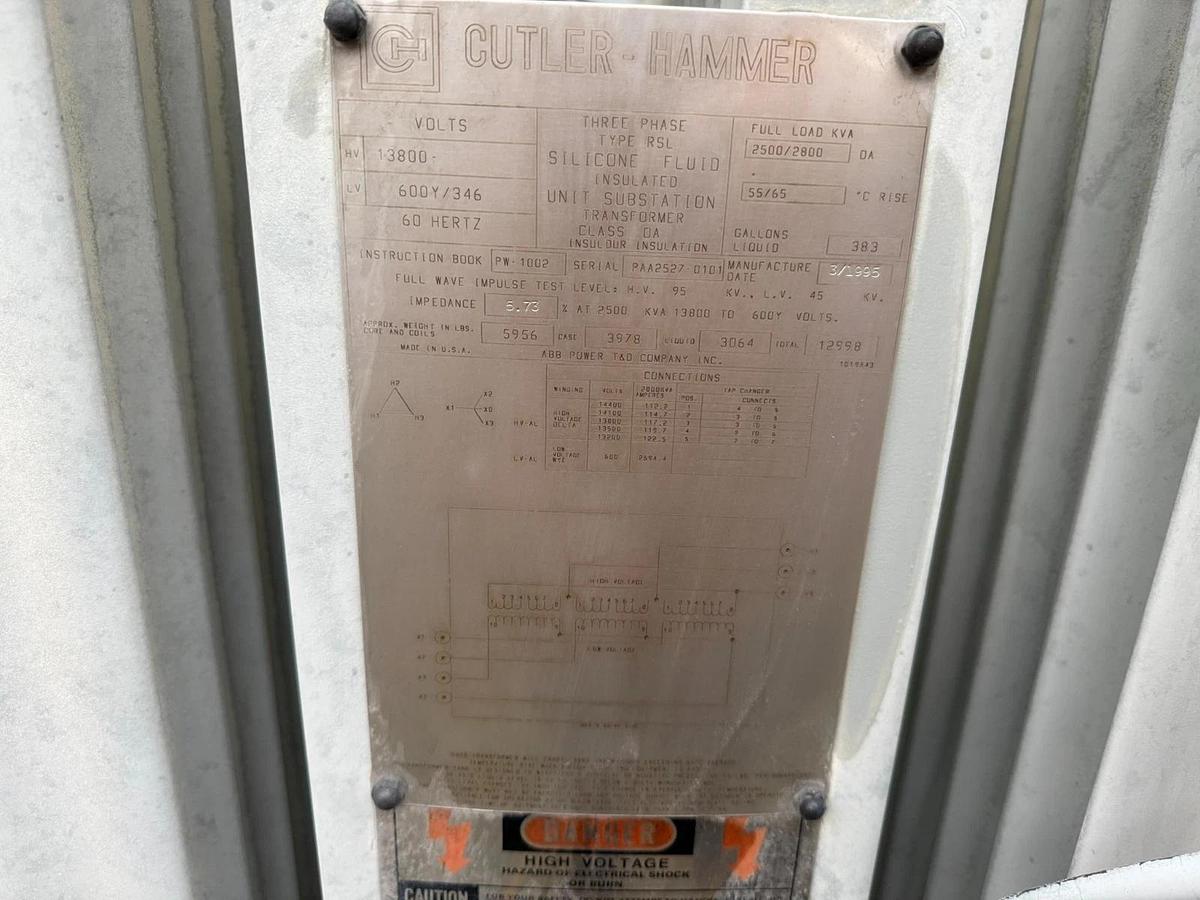

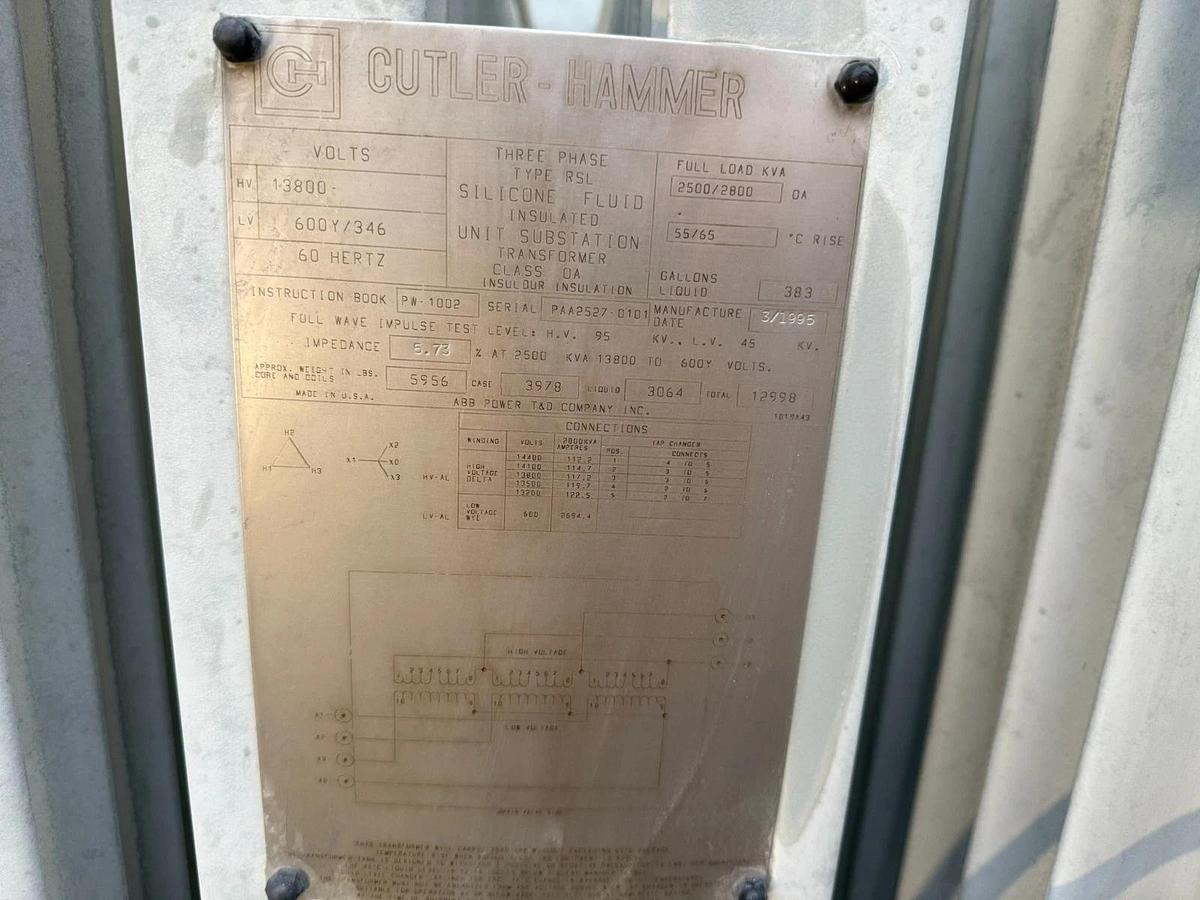

Equipment Identification Manufacturer: Cutler-Hammer (ABB Power T&D Company Inc.) Type: Three-phase unit substation transformer Cooling/Insulation: Silicone fluid insulated Insulation Class: OA Frequency: 60 Hz Made in: USA Manufacture Date: March 1995 Electrical Ratings Primary (High Voltage) HV: 13,800 volts Connection: Delta Tap positions: 14,400 V 14,100 V 13,800 V (nominal) 13,500 V 13,200 V Secondary (Low Voltage) LV: 600Y / 346 volts Connection: Wye (grounded neutral) Power Rating Full Load: 2500 kVA (OA) 2800 kVA (FA) Temperature Rise: 55/65 °C Electrical Characteristics Impedance: 5.73% @ 2500 kVA BIL (Impulse Test Level): HV: 95 kV LV: 45 kV Fluid & Weight Silicone Liquid: 383 gallons Approx. Weights: Core & Coils: 5,956 lb Case: 3,978 lb Liquid: 3,064 lb Total: ~12,998 lb Serial & Documentation Serial Number: PA2527-0101 Instruction Book: PW-1002
