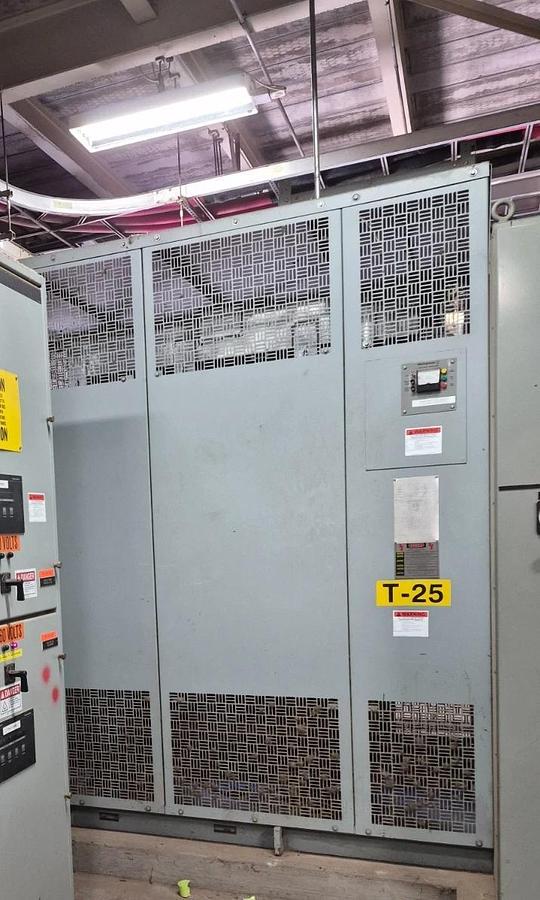

WESTINGHOUSE CAST COIL DRY TYPE TRANSFORMER 2000/2667 KVA 4160 DELTA / 480Y/277
WESTINGHOUSE CAST COIL DRY TYPE TRANSFORMER 2000/2667 KVA 4160 DELTA / 480Y/277
$49,500 (USD)
or
Call +1 215-664-6016
Description

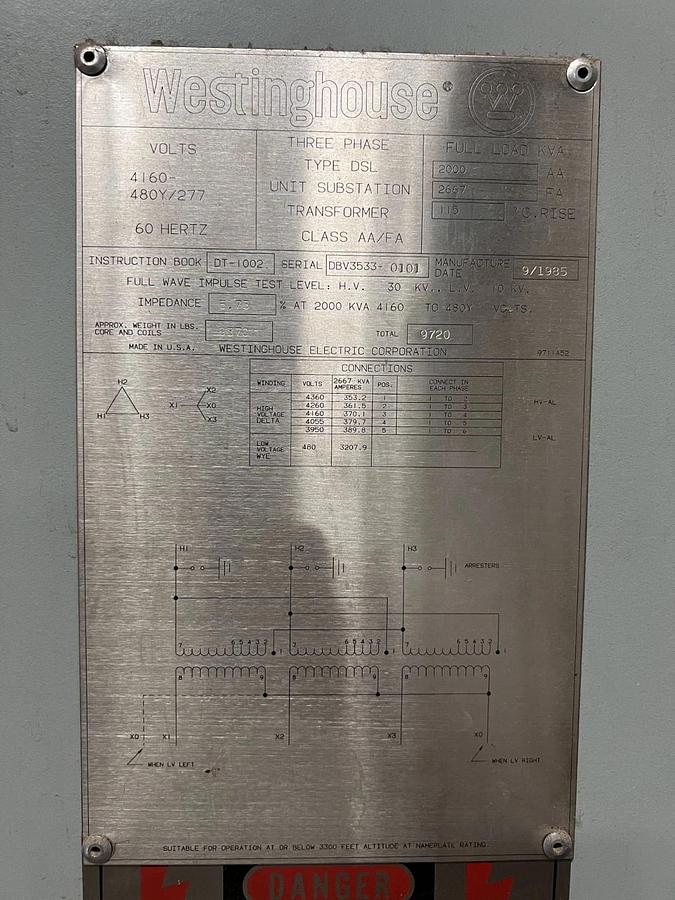

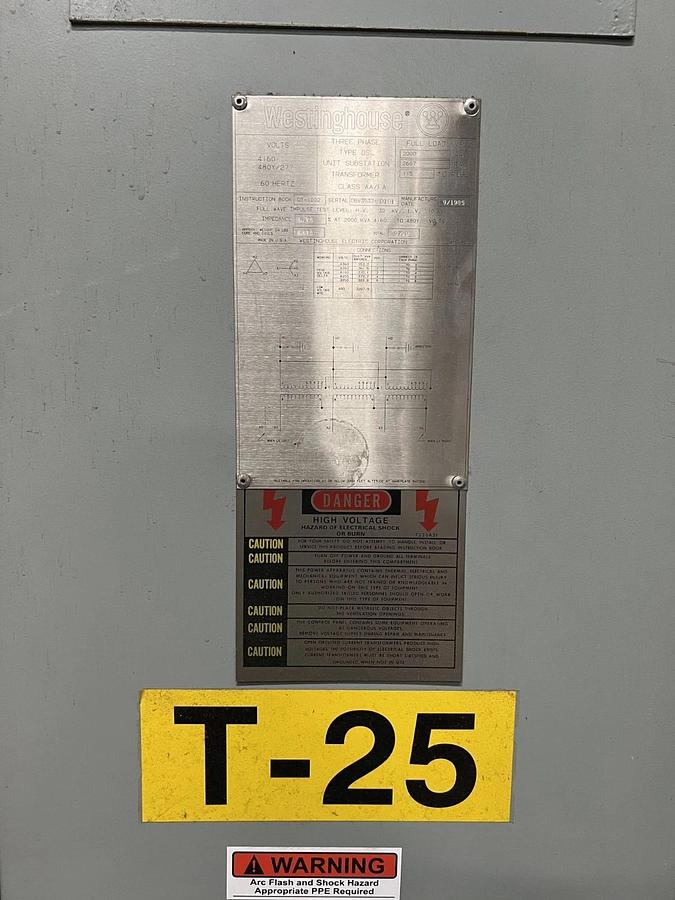

Nameplate specifications
Manufacturer:
Westinghouse Electric Corporation
Type:
DSL
Class:
AA/FA
Serial number:
DBV3533-0101
Manufactured:
September 1985
Frequency:
60 Hz
Primary voltage:
4,160 V delta
Secondary voltage:
480Y/277 V
Self-cooled rating:
2,000 kVA
Fan-assisted rating:
2,667 kVA
Temperature rise:
115°C
Impedance:
5.73% at 2,000 kVA
Primary winding:
Aluminum
Secondary winding:
Aluminum
Core-and-coil weight:
Approximately 8,370 lb
Total weight:
Approximately 9,720 lb
Altitude rating:
Full nameplate rating at or below 3,300 feet
Electrical ratings
Primary current at 2,000 kVA:
Approximately 277.6 amps
Primary current at 2,667 kVA:
Approximately 370.1 amps
Secondary current at 2,000 kVA:
Approximately 2,405 amps
Secondary current at 2,667 kVA:
3,207.9 amps
Primary tap settings
Primary voltage
Current at 2,667 kVA
Tap position
Connection
4,360 V
353.2 A
1
1 to 2
4,260 V
361.5 A
2
2 to 3
4,160 V
370.1 A
3
3 to 4
4,055 V
379.7 A
4
4 to 5
3,950 V
389.8 A
5
5 to 6
Specifications
| Manufacturer | Westinghouse |
| Model | TRANSFORMER |
| Condition | Used |
| Power Rating | 2000 kVA |
| Type | Power Transformer |
| Country of Origin | United States |
