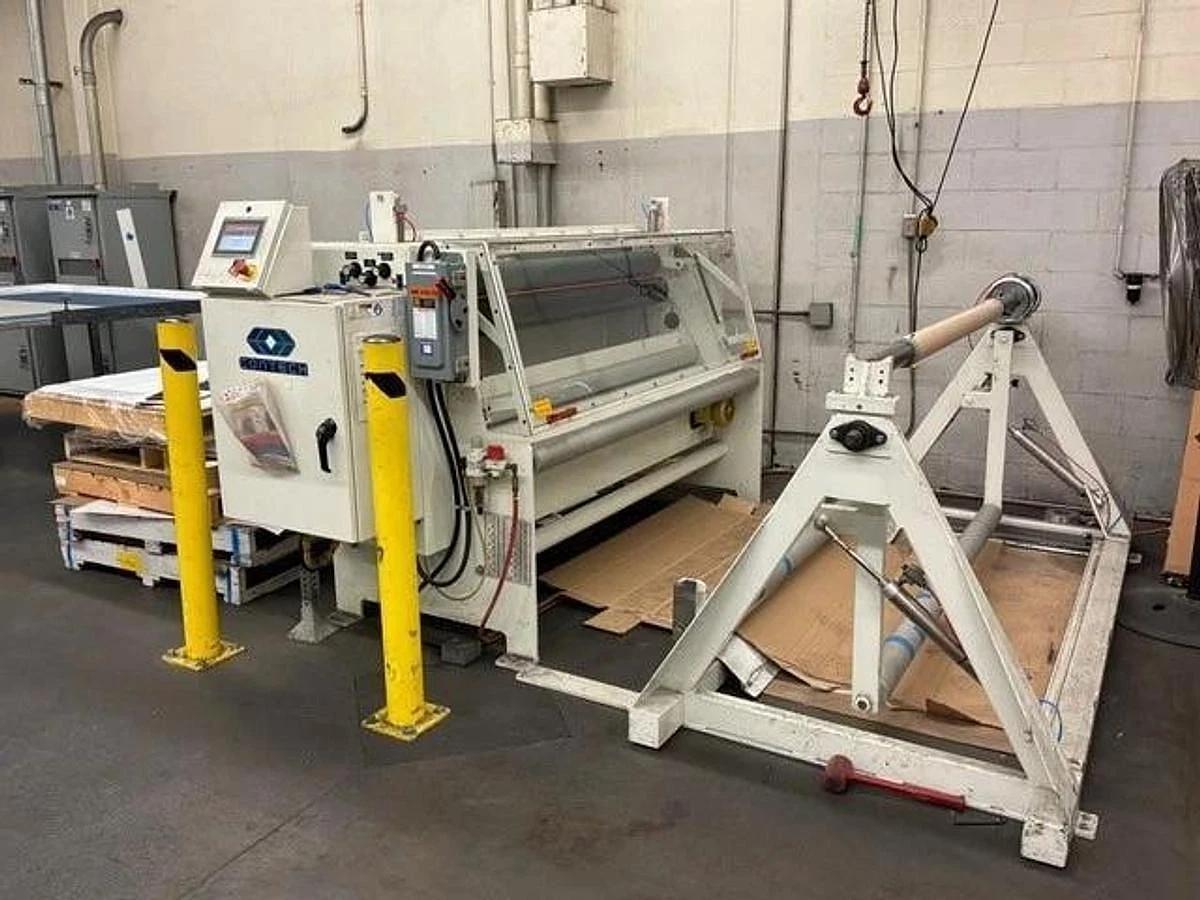

74" WIDE CONTECH MODEL OS-74 SERVO SHEETER AUTOMATED ROLL CUTTER ALLEN BRADLEY

74" WIDE CONTECH MODEL OS-74 SERVO SHEETER AUTOMATED ROLL CUTTER ALLEN BRADLEY CONTROLS MANUFACTURED 2018 Cutting: Standard down-acting scissor shear cutting system with heavy duty blades with air biased. Cut speeds less than .4 seconds. Cut length tolerance on stable material +/- 1/64" for 36" long sheet. KEY PRODUCTION FEATURES High-Speed Industrial Sheeting: Designed to effortlessly convert wide Master Parent Rolls into perfectly squared flat sheets. Inline Slitting & Edge Trimming: Equipped with an integrated adjustable slitting system to trim rough roll outer edges or slit rolls to custom widths simultaneously prior to the cut. Advanced Servo Pull-Roller Drive: Dual-axis precision servo increment control ensuring clean, uniform sheet length calibration. Integrated Web Guiding System: Automatic precision edge guide configuration tracking and correcting roll alignment anomalies live. Powered Unwind with Roll Lift: Heavy-duty triangular structural A-frame unwind station boasting integrated pneumatic lift arms to cleanly lift heavy stock off the warehouse floor. TECHNICAL MACHINE SPECIFICATIONS Year of Manufacture: 2018 (Officially Verified with Manufacturer) Model Platform: OS-74 (Premium Open-Frame Series) Serial Number: OS606740618 Maximum Web Width: 74 Inches (1,880 mm) Structural Frame Clearance Unwind Roll Diameter: Accommodates rolls from 20" minimum up to a maximum of 48" â 60" Outer Diameter (O.D.). Easily handles standard 22", 24", and large 50" mill-rolls. Material Thickness Range: Processes flexible light-gauge films up to heavy industrial press stock. Thickness Capacity: Approx. 1.5 mil up to 40 mil maximum. Ideal for: High-speed conversion of 14 pt, 18 pt, and 24 pt cardstock, cover stocks, and dense paperboards. Automation Platform: Allen-Bradley Control Logic with Colored Operator Touchscreen HMI panel. Maximum feed speed 300 FPM Machine cut speed .4 seconds ELECTRICAL & FACILITY REQUIREMENTS Main Power Supply: 480 VAC, 3-Phase, 60 Hz Total Full Load Amps (FLA): 9.81 A Largest Motor FLA: 6.51 A Short Circuit Current (SCCR): 100,000 A Electrical Enclosure Type: NEMA 1 Panel Disconnect Size: 30 A Pneumatic Air Feed: 90 PSI Max
